my name is Martin, my call sign is "DO4LMR" (amateur radio) and "13LMR1" (cb). I am pleased with your interest in my radio activity. My QTH is not far from Kiel in northern Germany (JO44XF).

I was born in 1962. My amateur radio license is from 1987. When I was 10 years old, my father bought a pair of walkie talkies from Taiwan, 1 channel on 27.125MHz on a 80cm antenna. The range was of course lousy, so my father gave me them without greater reprimands. The radios improved suddenly the tactical options in our cowboys- and indians-games around the house block.

I had installed a CB radio (12Ch/0.5W) in my first car, and I drove to smaller hills nearby. My best coverage at that time was exciting 27km with a DV27. To have fun with CB and incorporate even a CB radio in your car, was socially at lowest level at these days. Then I lost my interest on radios, only short interrupted from making the licence. In the 90 years my interests woke up by packet radio, an interest that no one in my area shared with me. The radio amateur clubs nearby were not attractive because many members still had mental problems with computers. And: I found no achievable gateway from Packet-Radio to the Internet, they were at least not legally. Since the end of 2013 I'am interested in the digital modes. When I am asked what fascinates me in hamradio, I am not able to give any meaningful or convincing answer.

I use five radios:

  • Icom706MK2: 15m / 80m, 10-50W
  • Kenwood TS120S: 15m / 80m, 10-50W
  • Albrecht AE5890EU: 10m / 11m, 10W
  • Leixen VV-898: 2m / 0.70m, 10W
  • Baofeng GT3: 2m / 0.70m, 5W

Radios of DO4LMR

These radios operated on three antennas:

  • 11m / 10m: vertical-antenna A99 on the roof
  • 80m / 15m: horizontal wire (23m) between the house and a tree, app. 8m above ground (instruction by DC4KU, assembled by DO2PHS.)
  • 2m / 0.7m: vertical-antenna X50 on the roof

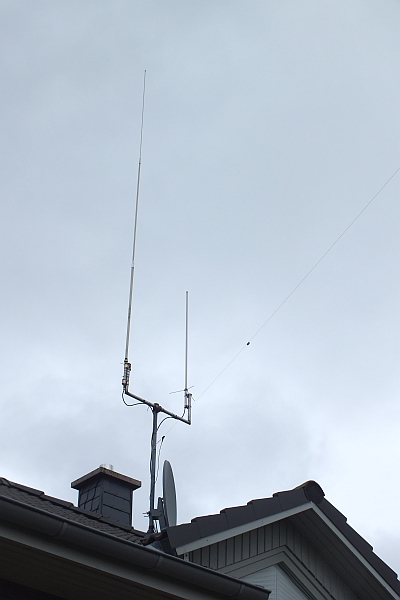

Antennas from DO4LMR / 13LMR1

My preferred modes of operation are the well-known digimodes JT65 and PSK31. The entry into it I found with the setup AE5890EU / A99 on the 10m-band. I bought both units as well as the external power supply second-hand together for less than 200 euros. The cost of the antenna mast on the roof I can not remember. I think one can say: For a total of 300 euros you often can operate worldwide short-wave radio unless the housing situation is okay and a reasonably current PC are available.

I am pleased when my relaxed low-level station is listed on any Saturday in the top 10 worldwide in the PSK Reporter. As a moderate QRP-fan, CW in SSB on 2m applies to me as the operationally true king discipline.

Ranking my callsign DO4LMR in the PSKReporter on the 15.3.2015

Update 2017-01: Meanwhile, I have found special fun at SDRs, and how to manage to be listed again with only small means not only somewhere in the PSK reporter, but with the help of simple SDR receivers (FiFi, Pappradio, Funcube, RTLSDR, S1) as far up and across all the bands. I have written several articles in the context of digimodes and SDRs: An introduction to the decoding of digimodes and a comparison of the reception qualities of different SDRs and radios. (

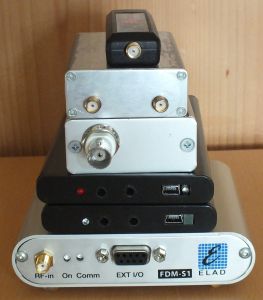

My collection of SDRs:
S1, 2x Pappradio, RTLSDR, FiFi2.0, FunCubePro

QSL-Cards via the usual amateur radio channels I do not send. For the confirmation of radio contacts this does not makes sense longer, since there is the PSKreporter and if one uses only digimodes like me. However, I sometimes receive a QSL-card via direct e-mail (DO4LMR at web point de), which makes me happy and I of course than react with a QSL-card.

Last: Since 1.1.2012 the digimodes are admit, together with 12W and SSB, in the CB. For the purposes of the "Free Radio Project", which has mainly devoted to deploying free Wi-Fi infrastructure for Internet Access in Germany, I see digimodes / CB as a further variant of a "Free Radio Project". Among the amateur radio PSKmail, which one can use sending e-mails between the radio network and the Internet, I have written several articles describing the operation of a PSKmail server on Linux in the CB radio range ( So far, however, no PSKmail activities in the CB radio are emerging. Two reasons are obvious: 1. Presumably, the frustration is too deep that even the mid 90s living packet radio network was not to keep going. 2. A data throughput of maybe 20 characters per second effectively even for mail is too small for younger people.

I would be very happy welcome a feedback via e-mail (DO4LMR at WEB Punkt DE). Actually, it would be a nice project to collect the stories of how we came to radio and what were ups and downs.

73 de Martin
